Specifications
Power: 1500W
Input Voltage: AC 110V & 220V, 50/60 Hz
Flame Height per Nozzle: 8–10 m Spray Angle: 5 directions
Fuel Type: Fire-making fuel
Fuel Capacity: 40 L
Fuel Consumption per Nozzle: 60 ml/s Operating Temperature: -20 °C to 50 °C
Connector Type: Waterproof 3-pin & 5-pin DMX connectors
Ignition Method: High-voltage electronic ignition
Control Method: Standard DMX signal control
Waterproof Rating: IPX3
Dimensions: 70 x 51 x 44 cm
Flight case dimensions: 87 x 60 x 66
Chassis material: Stainless steel Weight: 65 kg (without fuel)
Flight case weight: 91 kg
Chassis material: Stainless steel
Weight: 65 kg (without fuel)

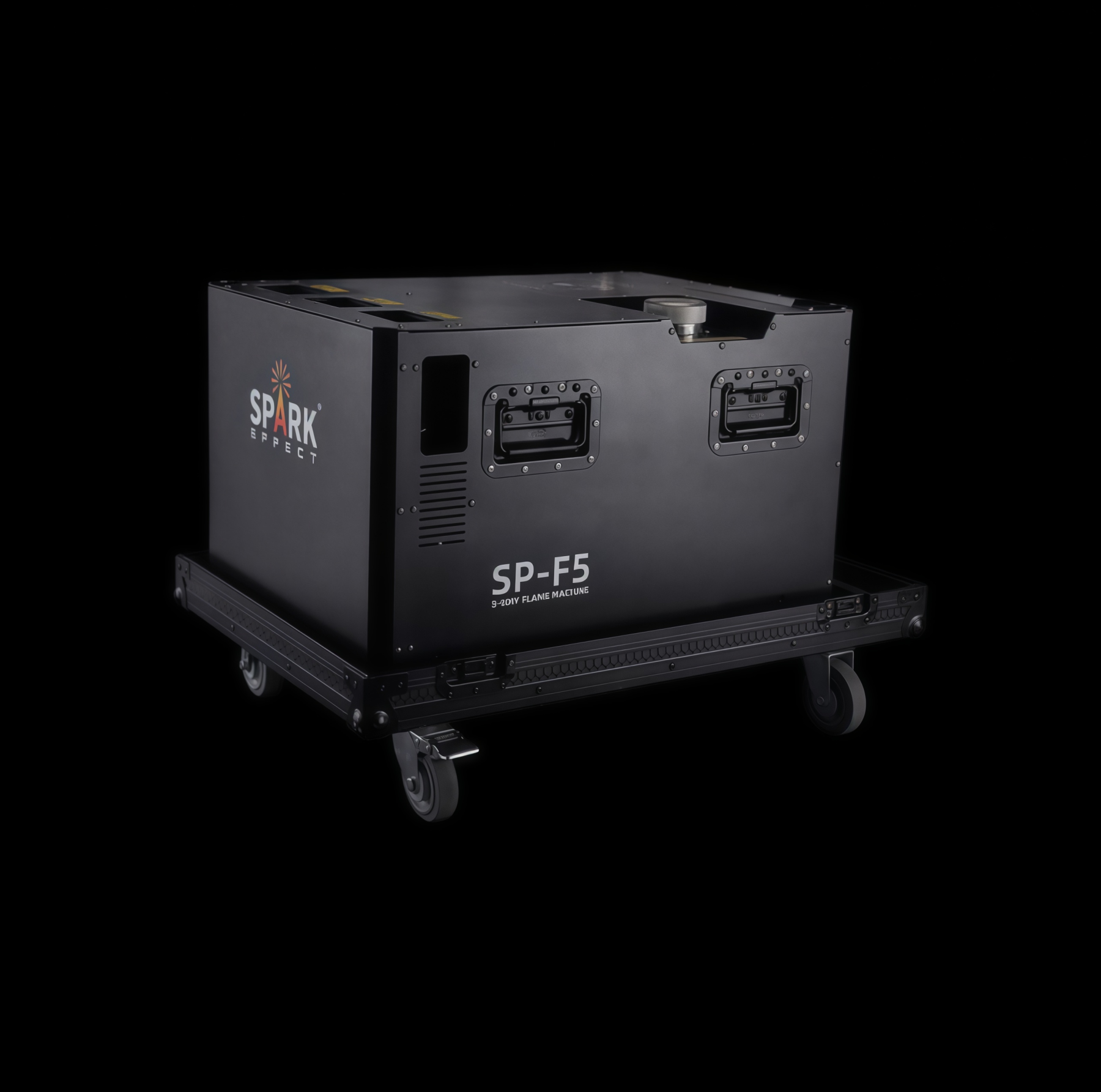

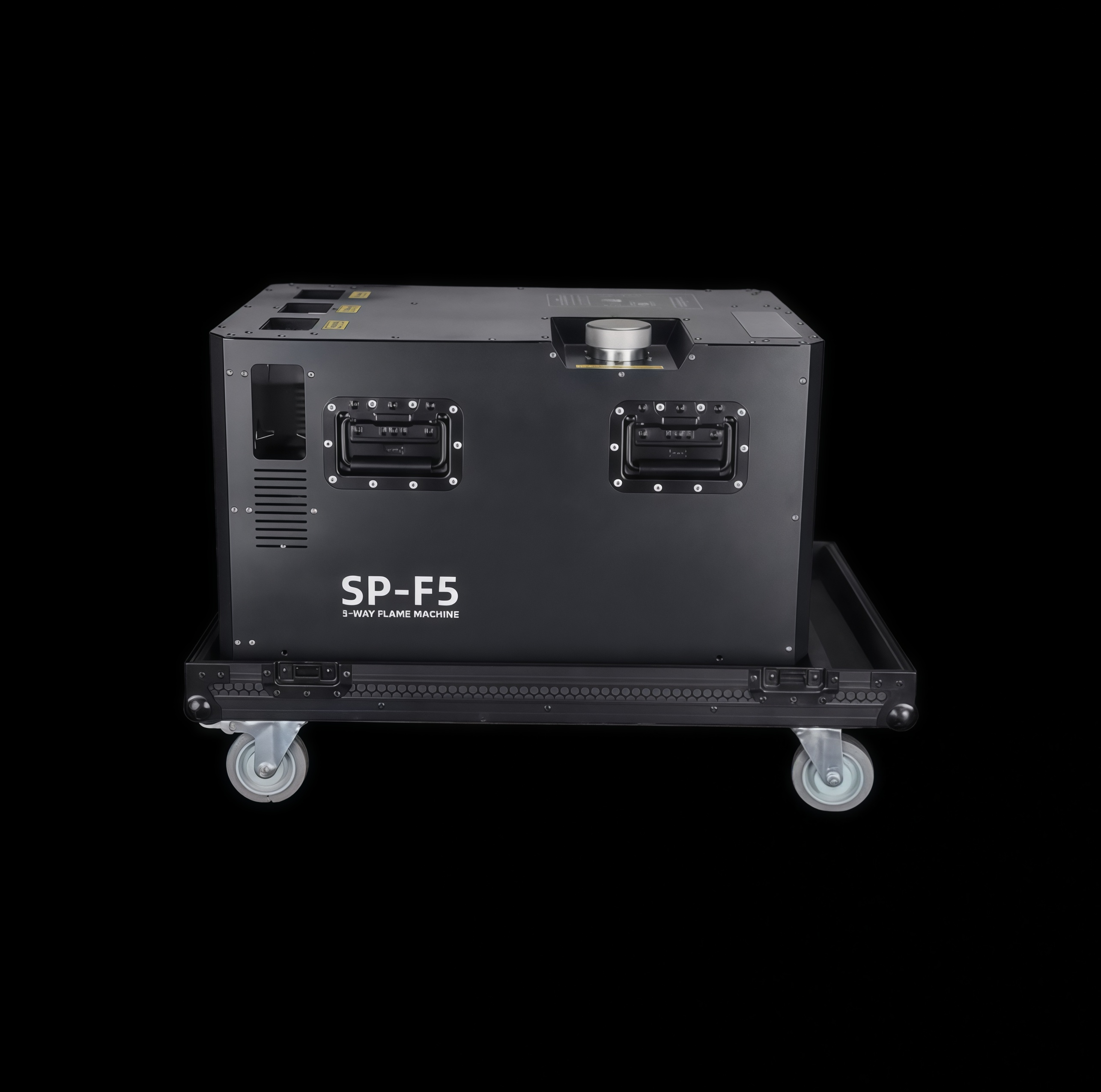

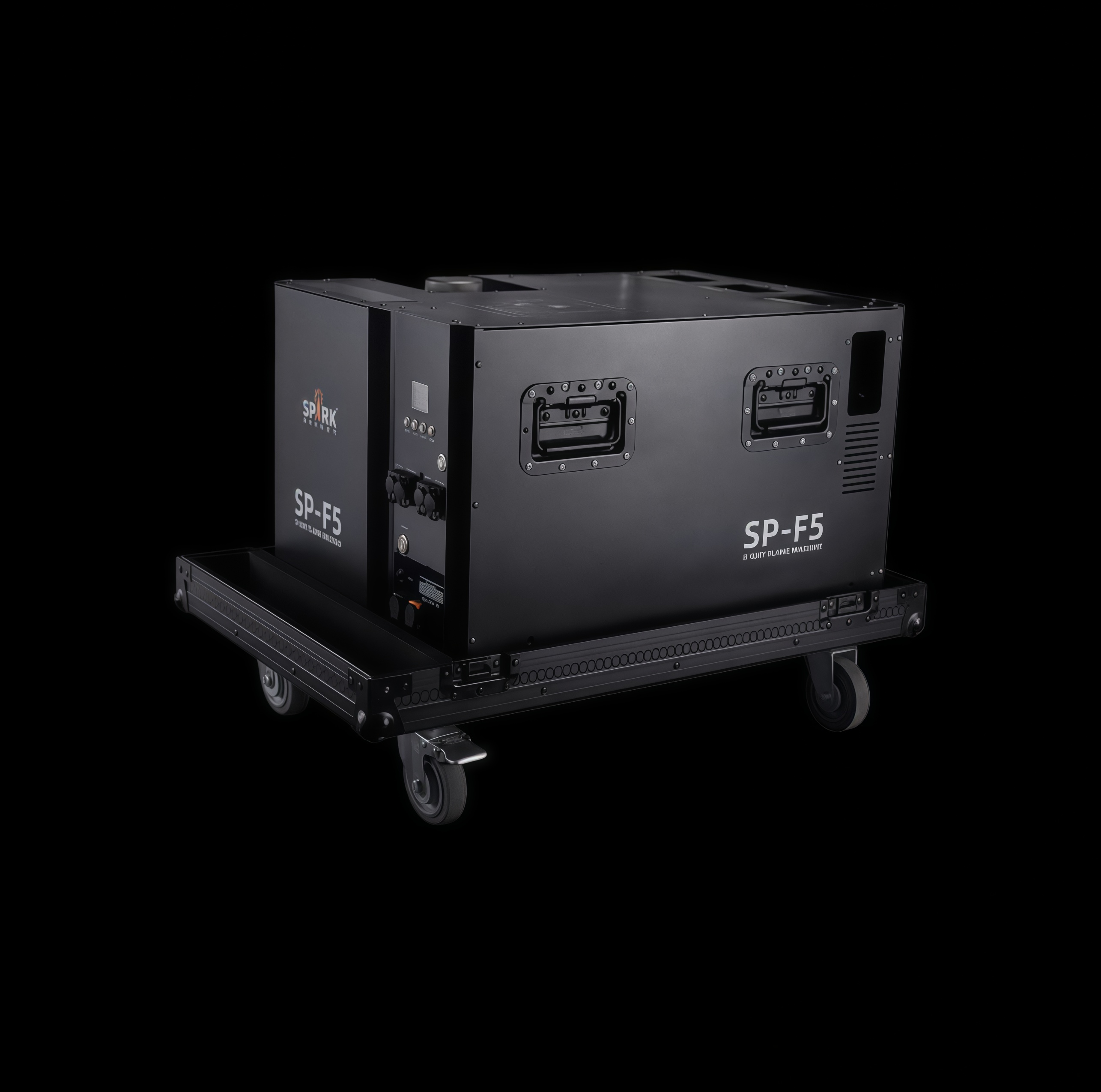

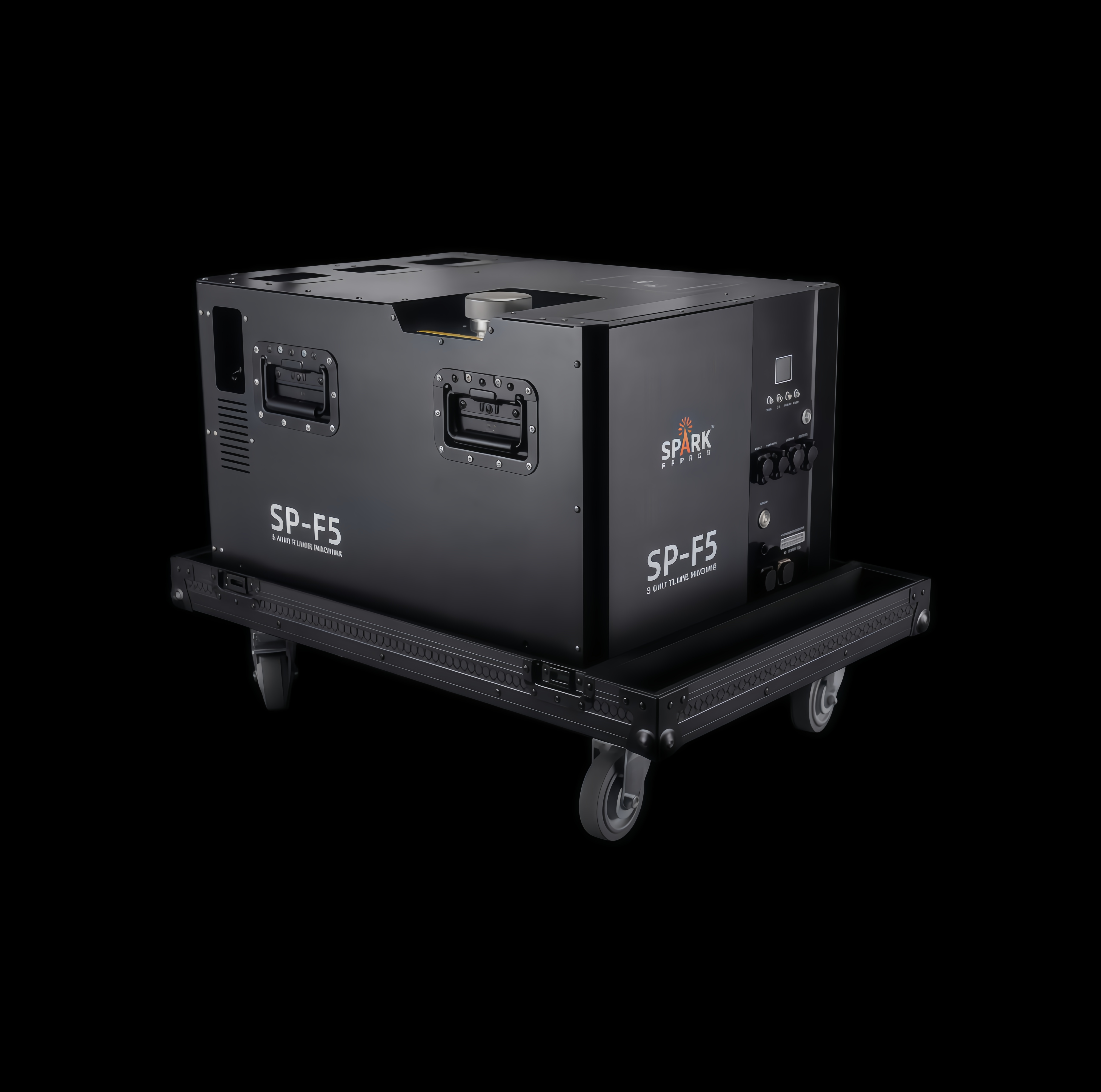

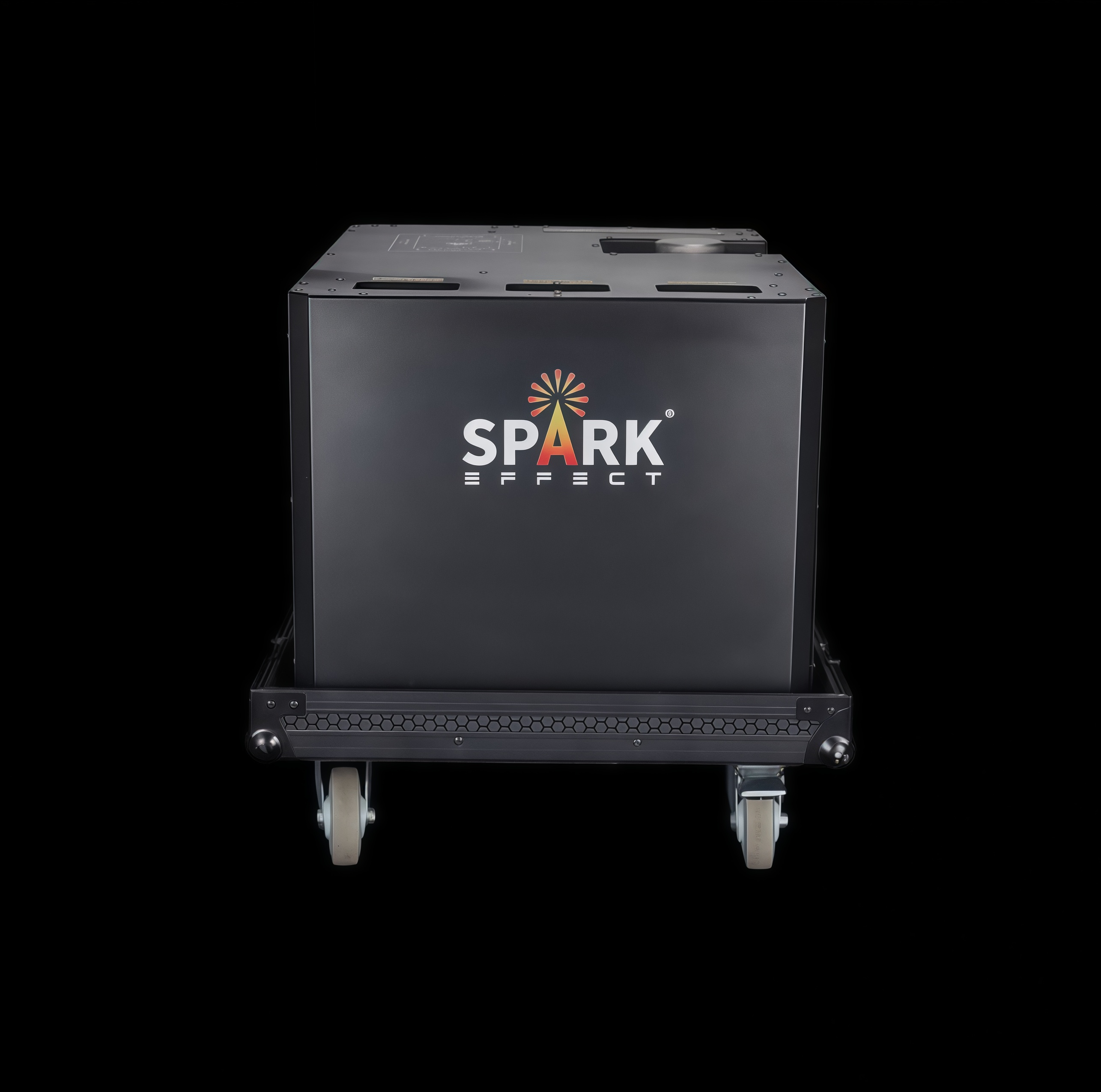

Product Introduction
The SP-F5 is a newly launched, rain-resistant, five-nozzle flame thrower from Spark Special Effects that uses liquid fuel. Featuring a stainless steel body and a fully rain-resistant design with an IPX3 waterproof rating, it is suitable for outdoor use in rainy conditions. Its unique safety lock design allows users to switch between operating mode and safety test mode to prevent accidental activation, and it is equipped with an intelligent electronic control system with alarm functions, ensuring safety and reliability. With a flame projection distance of approximately 8–10 meters, this unit can produce nearly 100 different flame effects—including simultaneous or sequential firing from all five nozzles—via DMX control. It delivers spectacular, high-impact displays and is ideal for large-scale cultural and tourism attractions, concerts, music festivals, and other outdoor events requiring a vibrant, fiery atmosphere.
Product Features
1: Stainless steel body with a rain-resistant design and IPX3 waterproof rating;
2: Unique safety lock design to prevent accidental activation;
3: Features an intelligent electronic control system with an alarm function for safety and reliability;
4: Incorporates an integrated valve assembly and imported jet valves for more stable operation;
5: Flame projection distance of approximately 8–10 meters;
6: Supports DMX512 signal control;
7: Equipped with a full range of weatherproof connectors for reliable performance;
8: Supports DMX512 signal control;
9: Equipped with a full range of weatherproof connectors for reliable performance
